Automated Brick Plant Drying Process Design: Single-Layer Tunnel Dryer with Rack Loading/Unloading System
Bricks Blocks Drying and Firing System
The drying and firing process adopts a two-stage setting and firing system integrated with tunnel dryer technology. The drying chamber is a tunnel dryer with dimensions of 83.65m × 22.625m. Heat for the dryer is recovered from high-temperature waste heat of fired bricks and residual heat from the tunnel kiln. An air-handling system is used to regulate the inlet air temperature and airflow volume, ensuring stable and reliable drying quality of green bricks.
The tunnel kiln features a large cross-section with an internal clear width of 6.6m and is designed with a flat ceiling structure. It is suitable for firing products with a heat value of 1200 kJ/kg.
The tunnel kiln is equipped with a complete system configuration, including a flue gas exhaust system, kiln car heat dissipation system, kiln car cooling system, gas combustion system, waste heat recovery system, rapid cooling system, and back-pressure (pressure balancing) system.
This kiln is characterized by large cross-section, high production capacity, small cross-sectional temperature difference, and excellent thermal insulation performance. In addition, the automatic kiln control system maintains stable thermal parameters throughout the firing process, effectively ensuring consistent and high-quality brick firing.

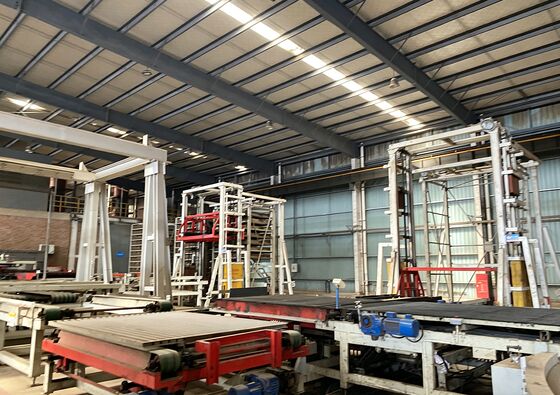

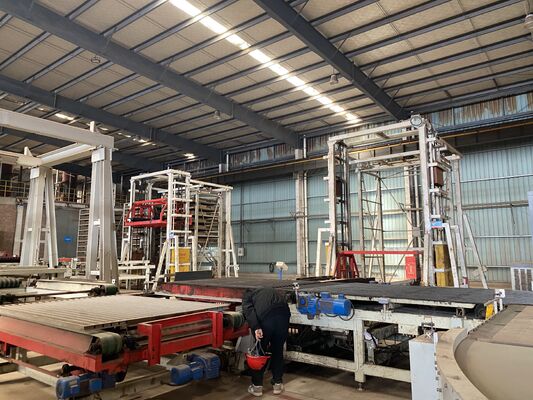

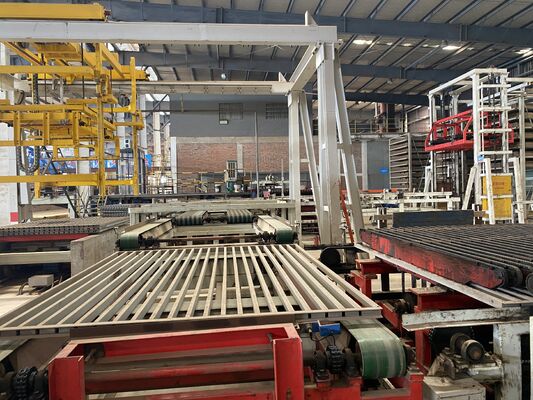

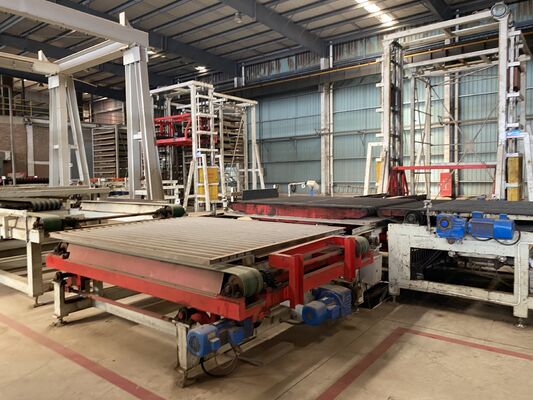

Brick Factory Tunnel Drying Line with Auto Loading & Unloading Equipment
Technical datas for reference :
| No. |
Item |
Parameter |
| 1 |
Total length |
83.65 m |
| 2 |
Carts contained in the dryer |
138 pcs |
| 3 |
Inner width |
22.125 m |
| 4 |
Inner height |
5.315 m |
| 5 |
Loading capacity per cart |
600 pcs (150×200×300 mm hollow bricks) |
| 6 |
Air-supplying temperature |
110～130 ℃ |
| 7 |
Air-exhausting temperature |
28 ℃ |
| 8 |
Moist-releasing humidity |
75~90 % |
| 9 |
Drying yield |
99 % |
| 10 |
Drying cycle |
22~26 hours |
| 11 |
Daily output |
400 tons |
| 12 |
Thermal consumption index |
180 kcal/kg |
| 13 |
Drying cart specification |
2920×2600×4795 mm |
| 14 |
Drying chamber outer dimension (L×W×H) |
83.65×22.625×5.565 m |
Brick Factory Tunnel Drying Line with Auto Loading & Unloading Equipment
